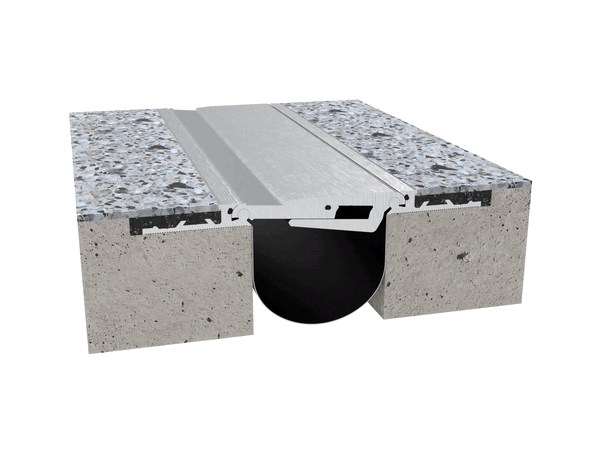

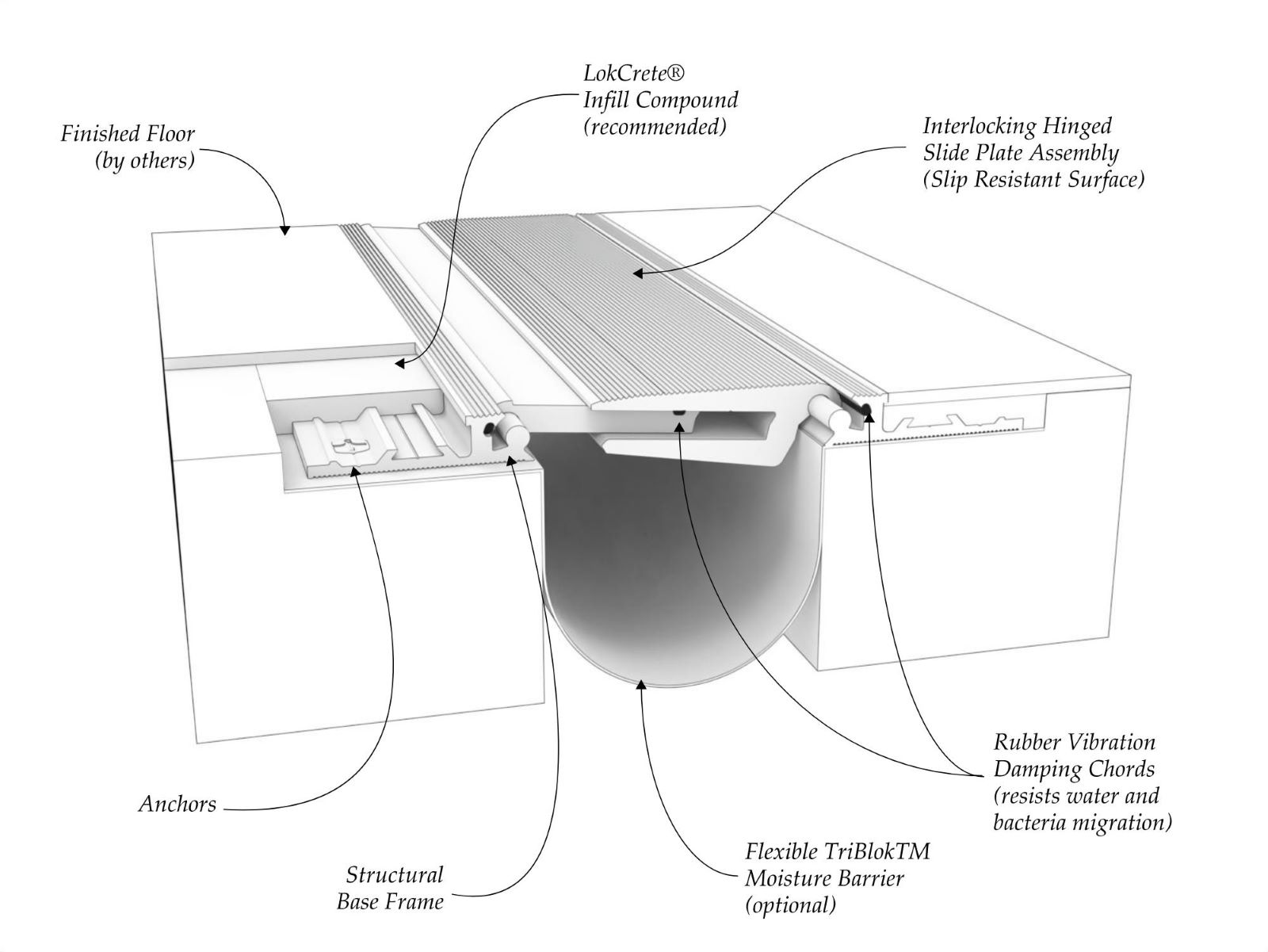

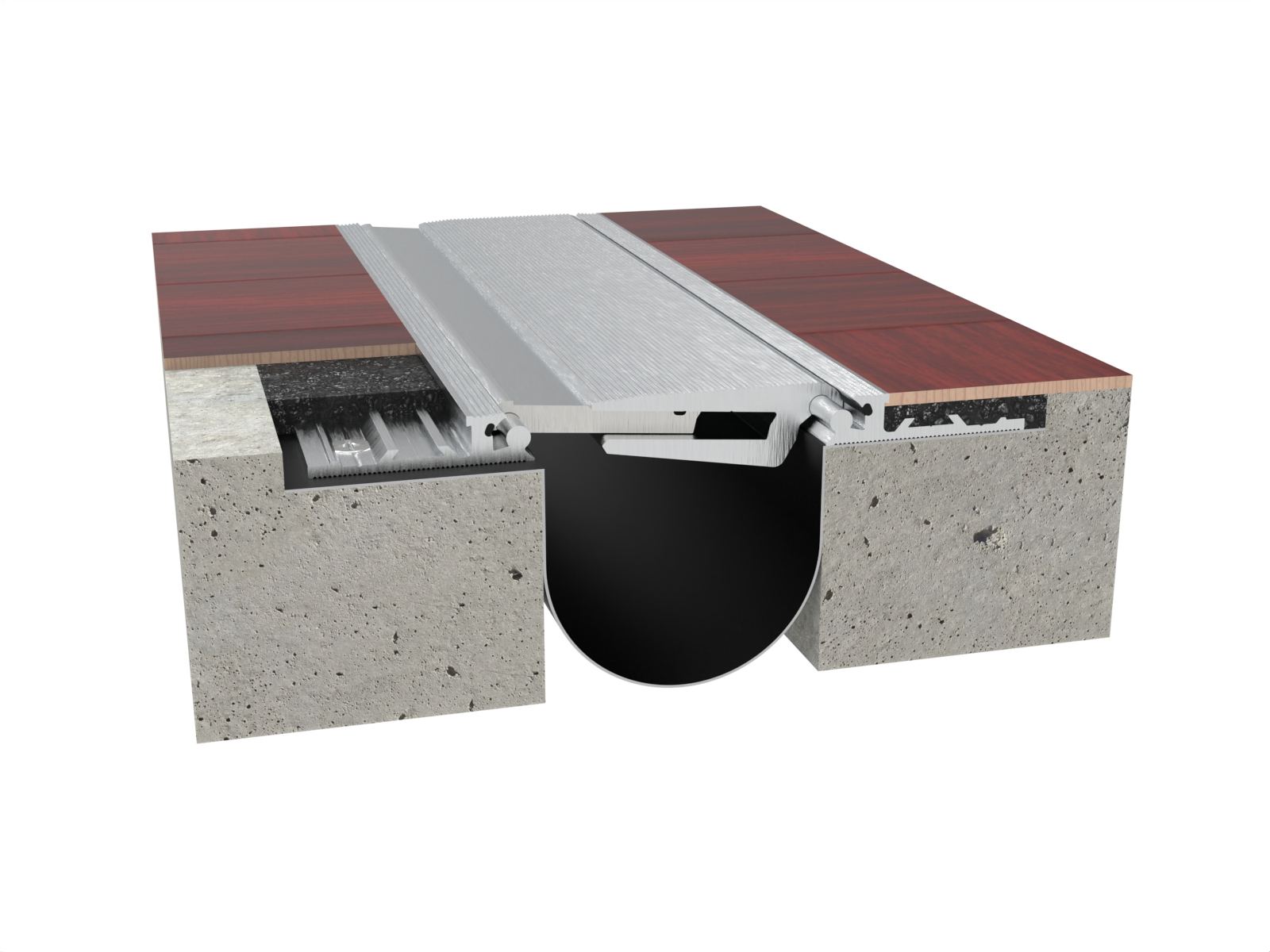

The Single Interlocking Hinge (SIH) Series expansion joint is designed for heavy-duty service environments providing a smooth and virtually impact-free no-bump transition between opposing floor surfaces. The low-profile interlocking center slide plates are hinged to allow the system to remain flush with finished floor surface while accommodating both thermal and multi-directional seismic movement. Three rubber anti-vibration dampers eliminate metal-to-metal noise and help prevent the infiltration of liquids and bacterial growth. An optional Tri-Blok® gutter and LokCrete® elastomeric concrete infill enhance the system’s waterproofing capability.
product features
- Interlocking slide plate assembly provides the ultimate flush floor-to-floor transition.
- Rubber vibration damping chords suppress water infiltration and bacteria growth.
- Six-way multi-directional seismic movement capability.
- Pedestrian friendly and ADA compliant.
- Provides flush no-bump transition for sensitive equipment and hospital gurneys.
- Accommodates fork trucks with pneumatic tires.
- Heavy-duty aluminum base frame with interlocking design insures proper alignment.
- Durable TriBlok® gutter provides added moisture protection (optional).
- Independent licensed PE load rating analysis available upon request.
- LokCrete® impact resistant blockout embed filler flexes with deck loads (optional).
