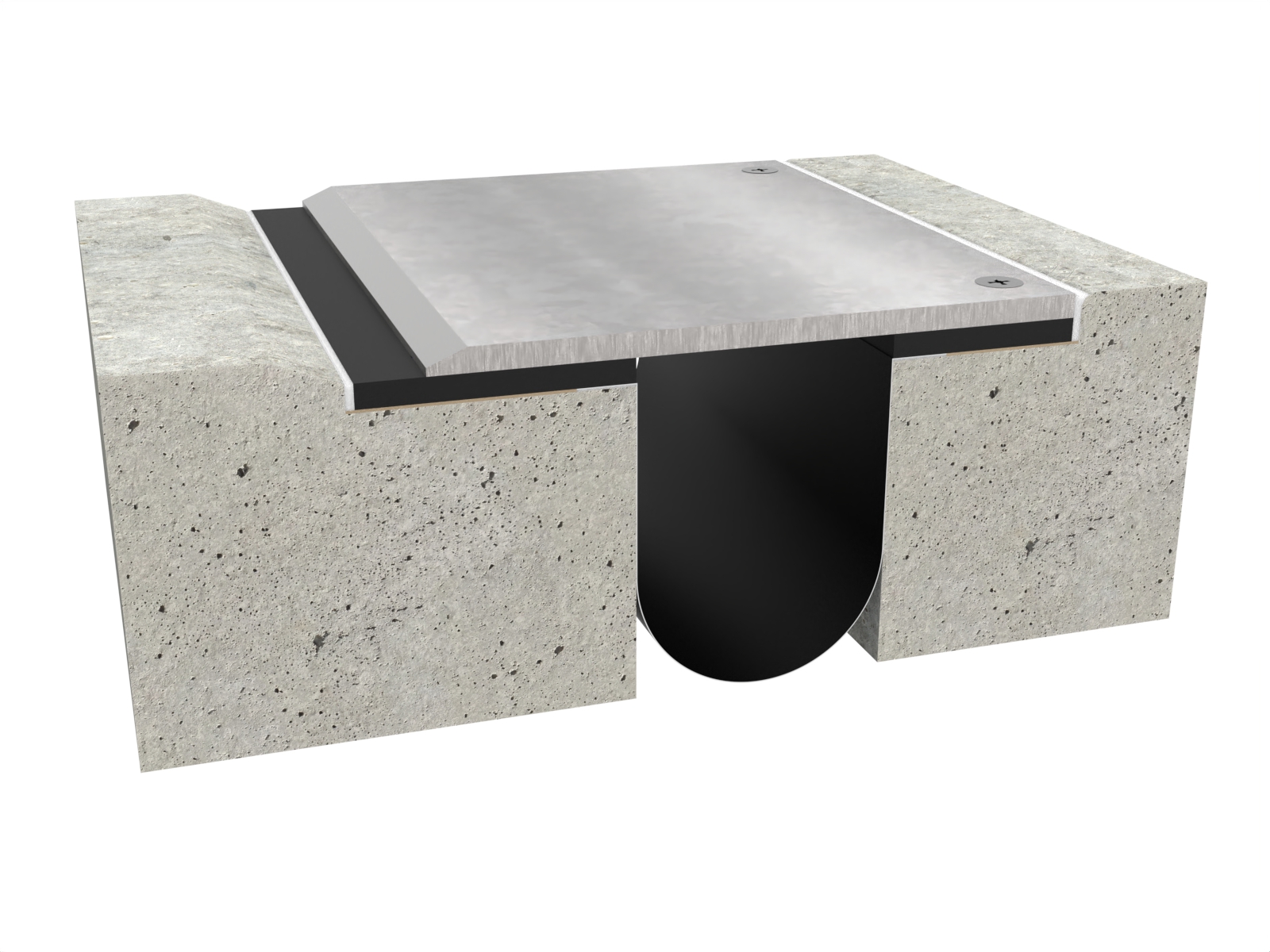

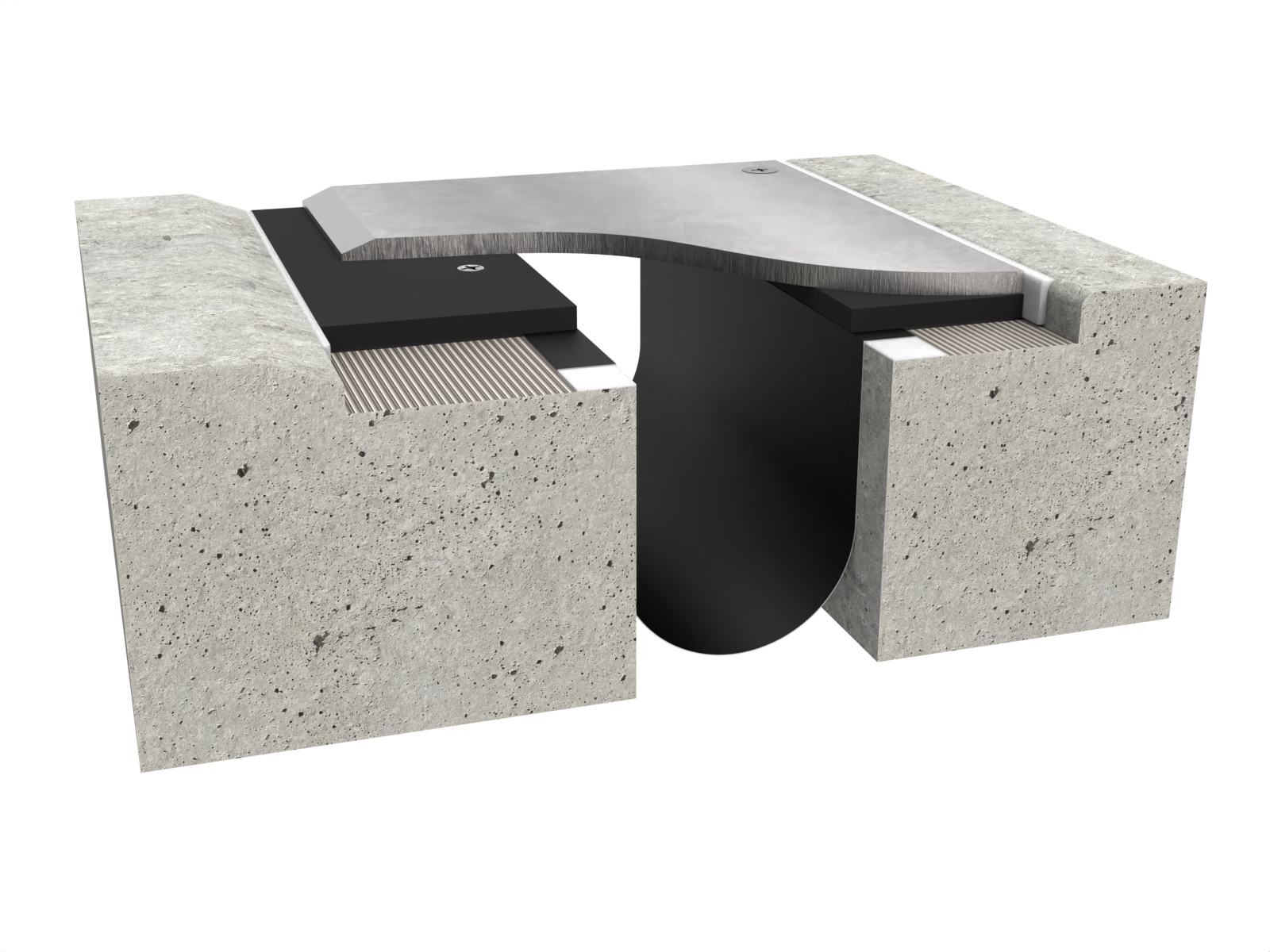

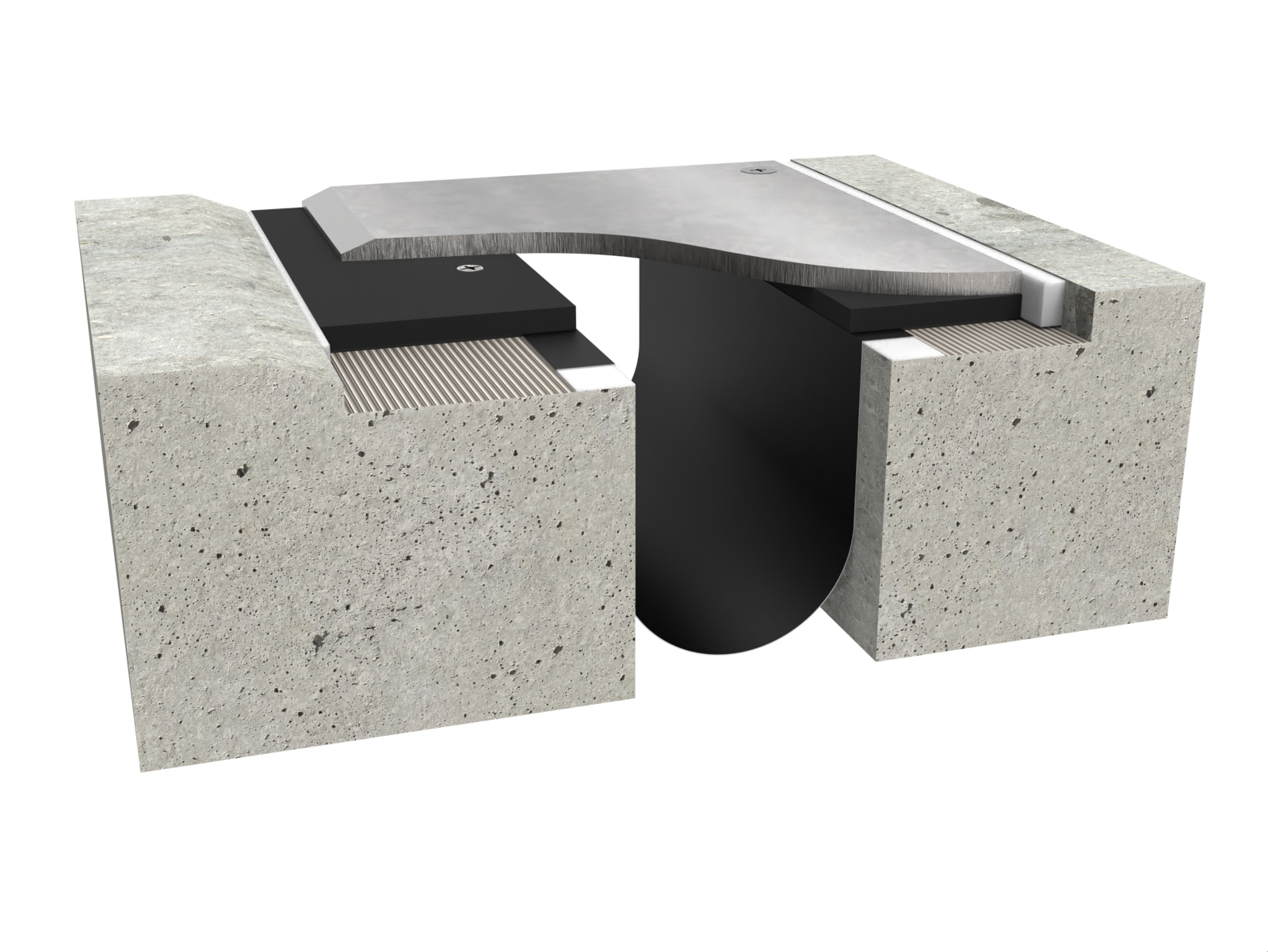

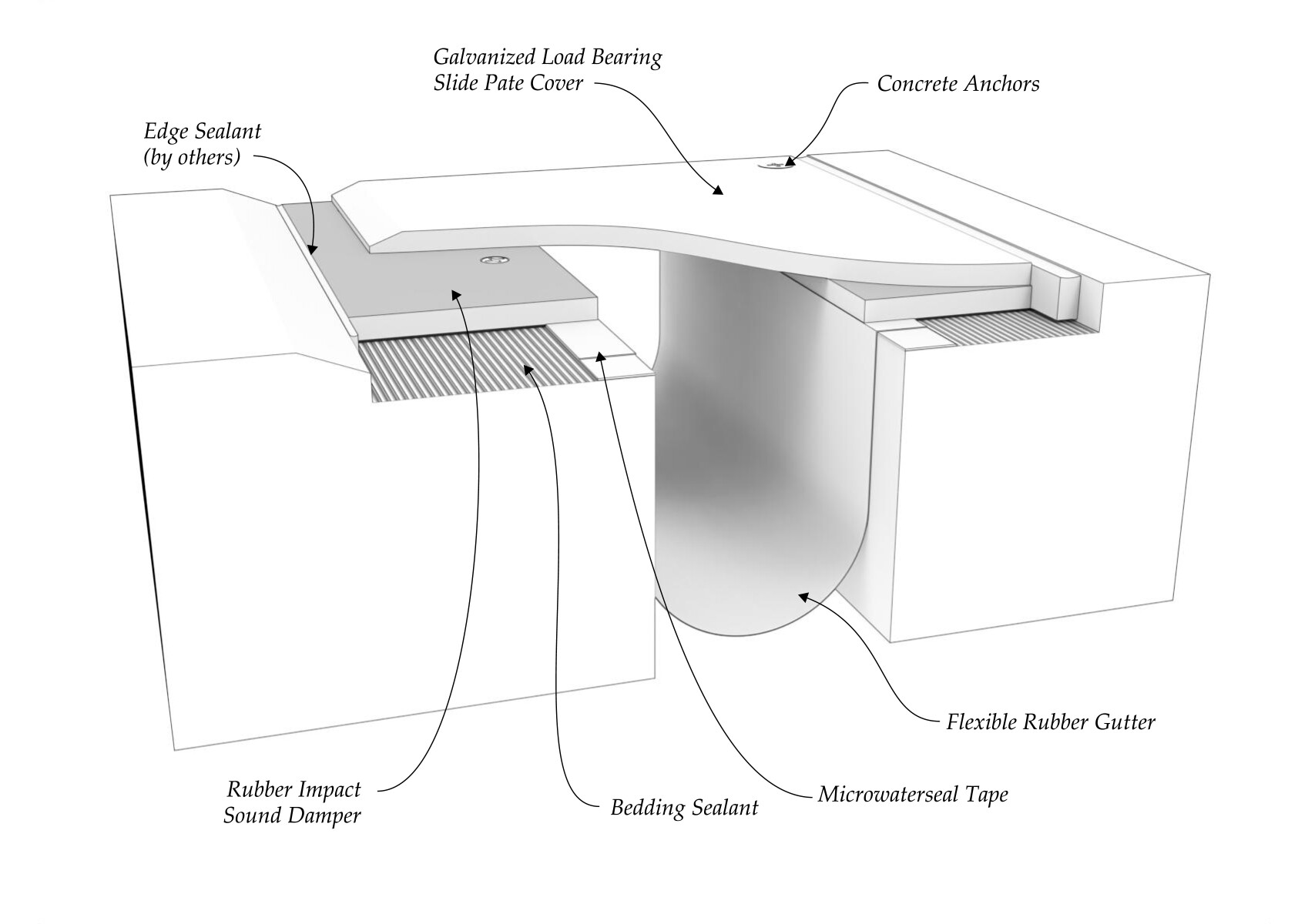

The Galvanized-steel Impact Damping (GID Series) expansion joint is designed for wide expansion joint openings with the ability to accommodate heavy loading. Recessed galvanized steel slide plates allow the system to remain flush during thermal movement. Rubber high-density impact damping base shock pads absorb traffic impact loads and adapt to minor deck deflection. The flexible fabric reinforced rubber gutter in conjunction with rubber base shock pads enhances the GID system’s waterproofing attributes.
product features
- For wide joints with recessed concrete blockouts.
- Impact damping rubber shock pads.
- AASHTO HS-20 load carrying capability.
- Compliant with ADA guidelines.
- Load bearing recessed slide plate cover with standard galvanized mill finish.
- Optional convex plate profile for decks with live load deflection.
- Optional slip-resistant galvanized diamond tread available.
- Slide plates are also available in aluminum (AID Series) and stainless steel (SID Series).
- Integral fabric reinforced puncture resistant continuous rubber gutter.
