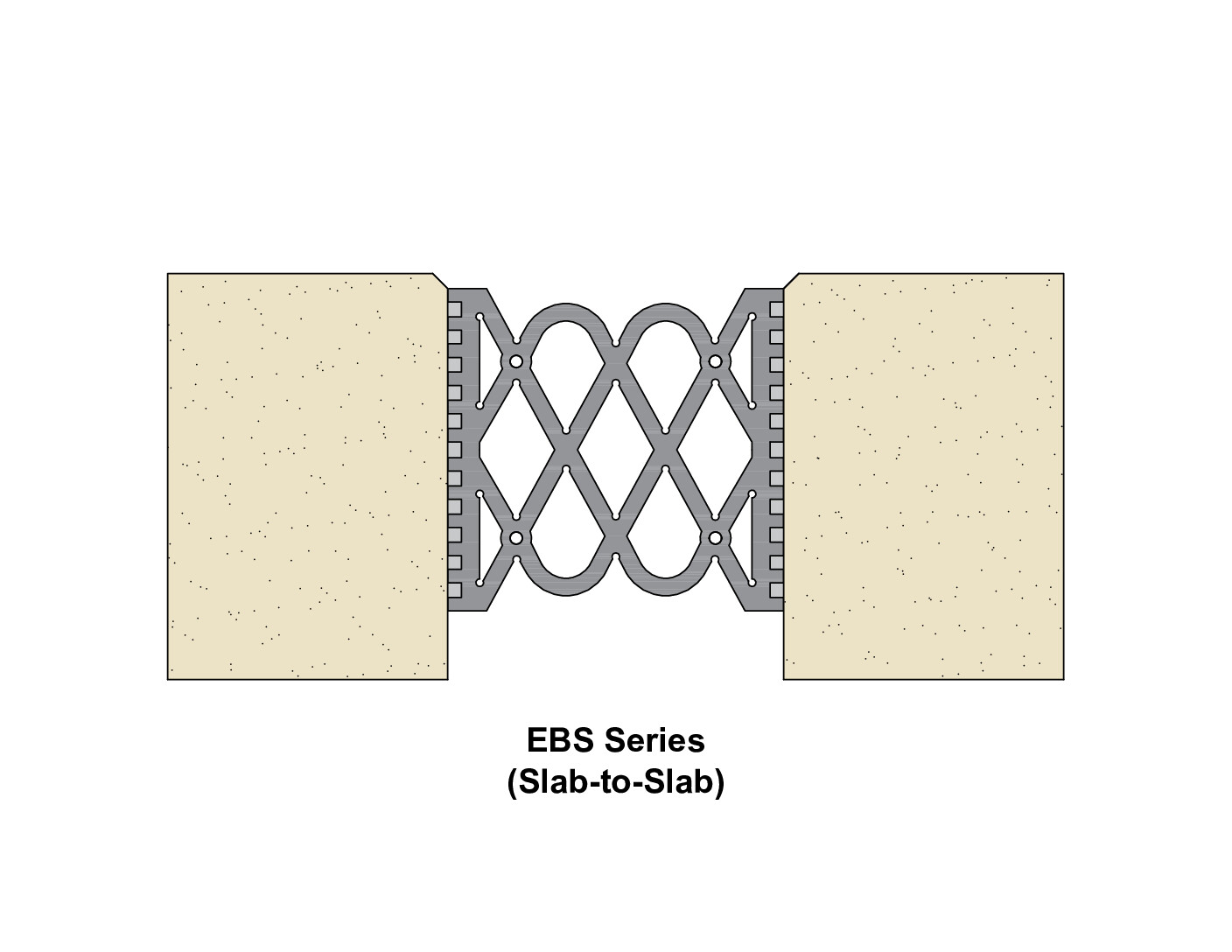

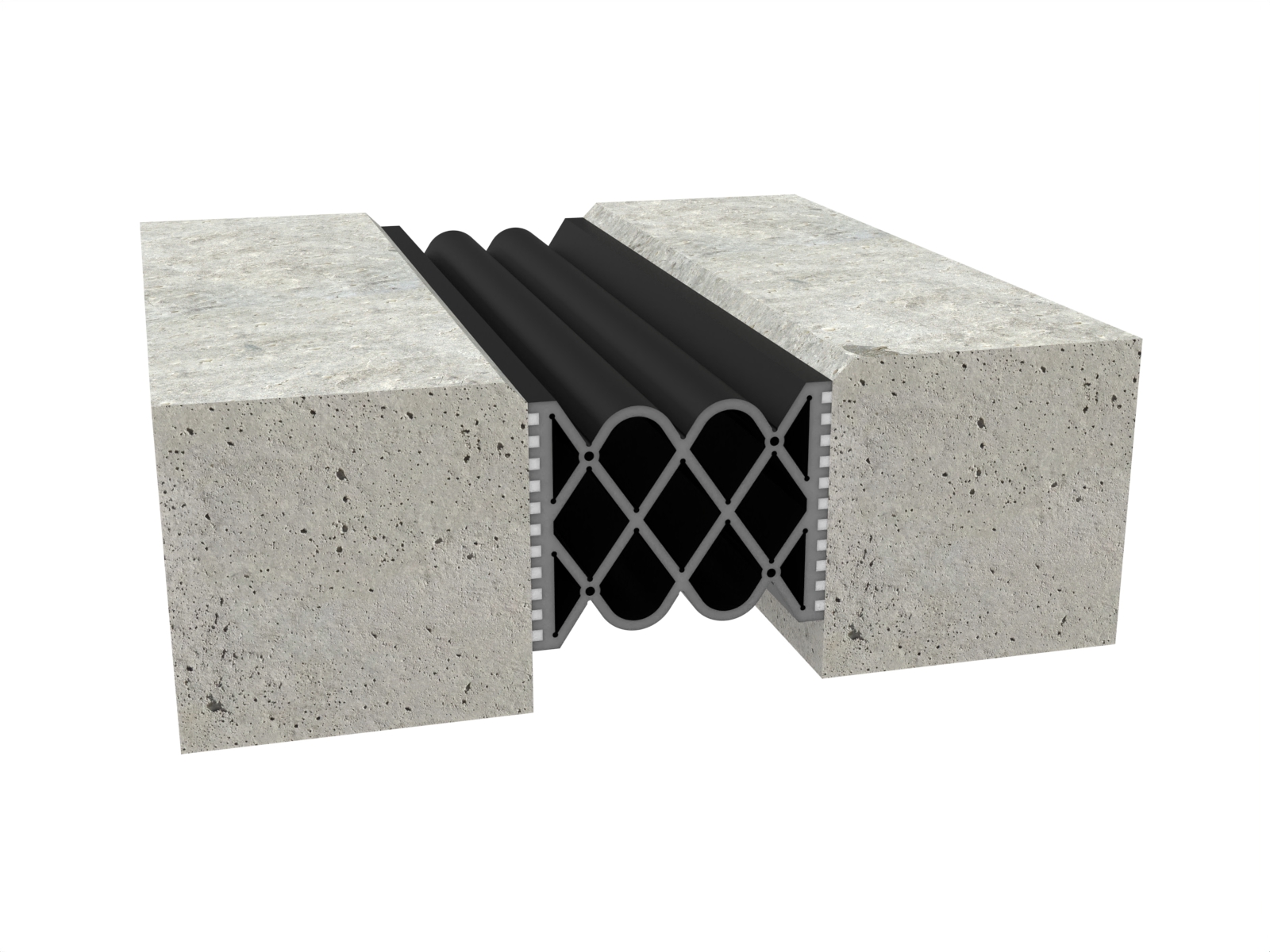

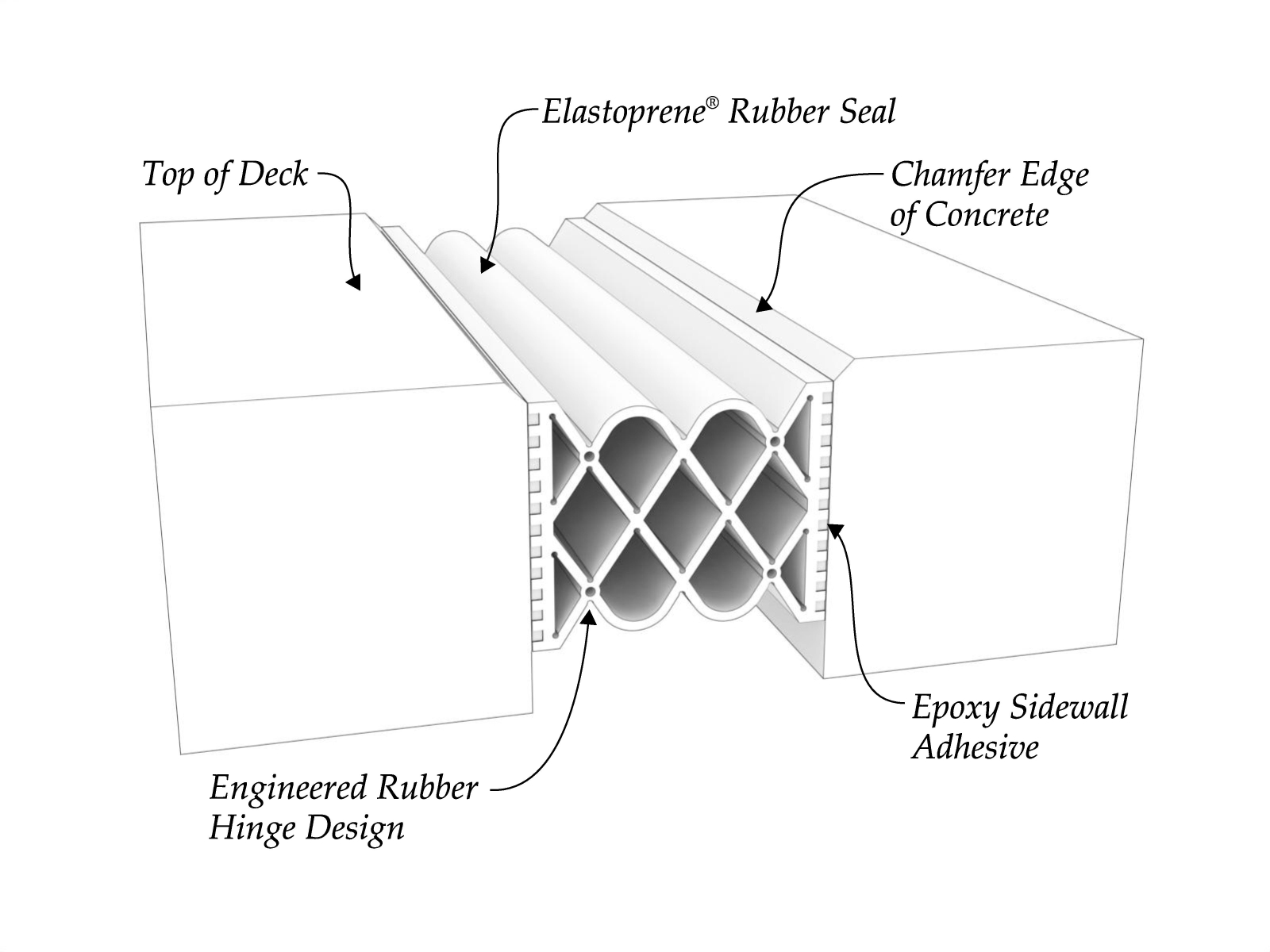

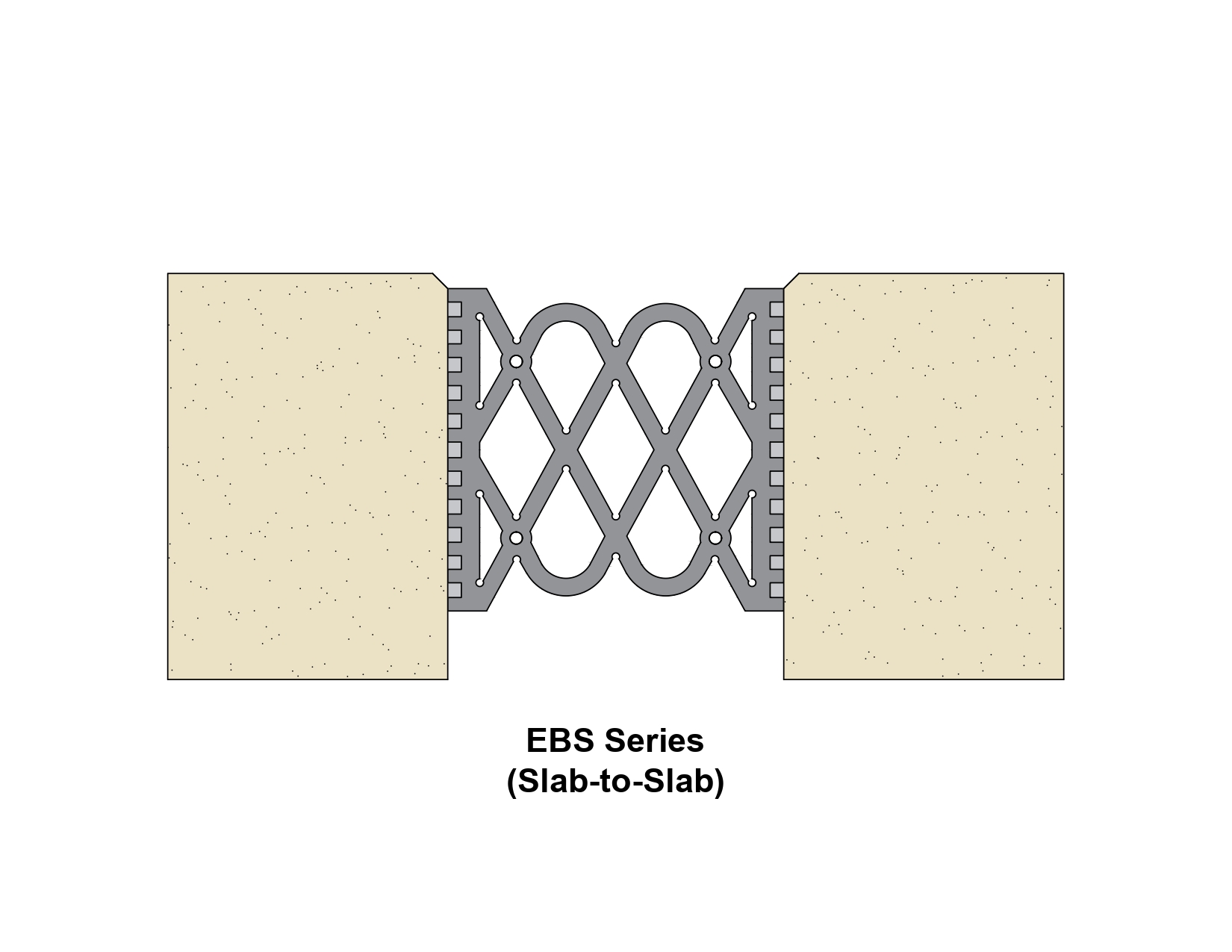

Epoxy Bonded Sealing System (EBS Series) is a high-performance waterproof expansion joint system with a continuous Elastoprene® rubber seal that is bonded in place with a thixotropic structural epoxy adhesive creating a watertight seal. The system is capable of multi-directional movement. The rubber seal is oversized to accommodate vertical deck deflection as well as joint openings that increase in width due to long-term shrinkage and creep.
product features
- No blockouts required.
- No mechanical anchors or metal components.
- Capable of thermal, seismic, vertical and lateral shear movement.
- Tenacious thixotropic epoxy anchoring system bonds to concrete, aluminum and steel.
- Available in continuous lengths for horizontal and vertical applications.
- System becomes integral with concrete deck.
- ADA compliant seal profile provides a pedestrian friendly walking surface.
- Exceptionally durable under vehicular traffic loads and extreme weather conditions.
- Resistant to UV, ozone, acid rain, most chemicals and extreme temperatures.
- Accommodates complex miters and changes in direction.
